ꟛ-10 Fantasy Console

Lambda-10 (ꟛ-10) is a fantasy console - a virtual decimal machine for making and playing retro games.

Btw, console has 10 parallel virtual CPUs! Everything is decimal, not binary: no bits, no bytes - dits (0-9) and dytes (0-999).

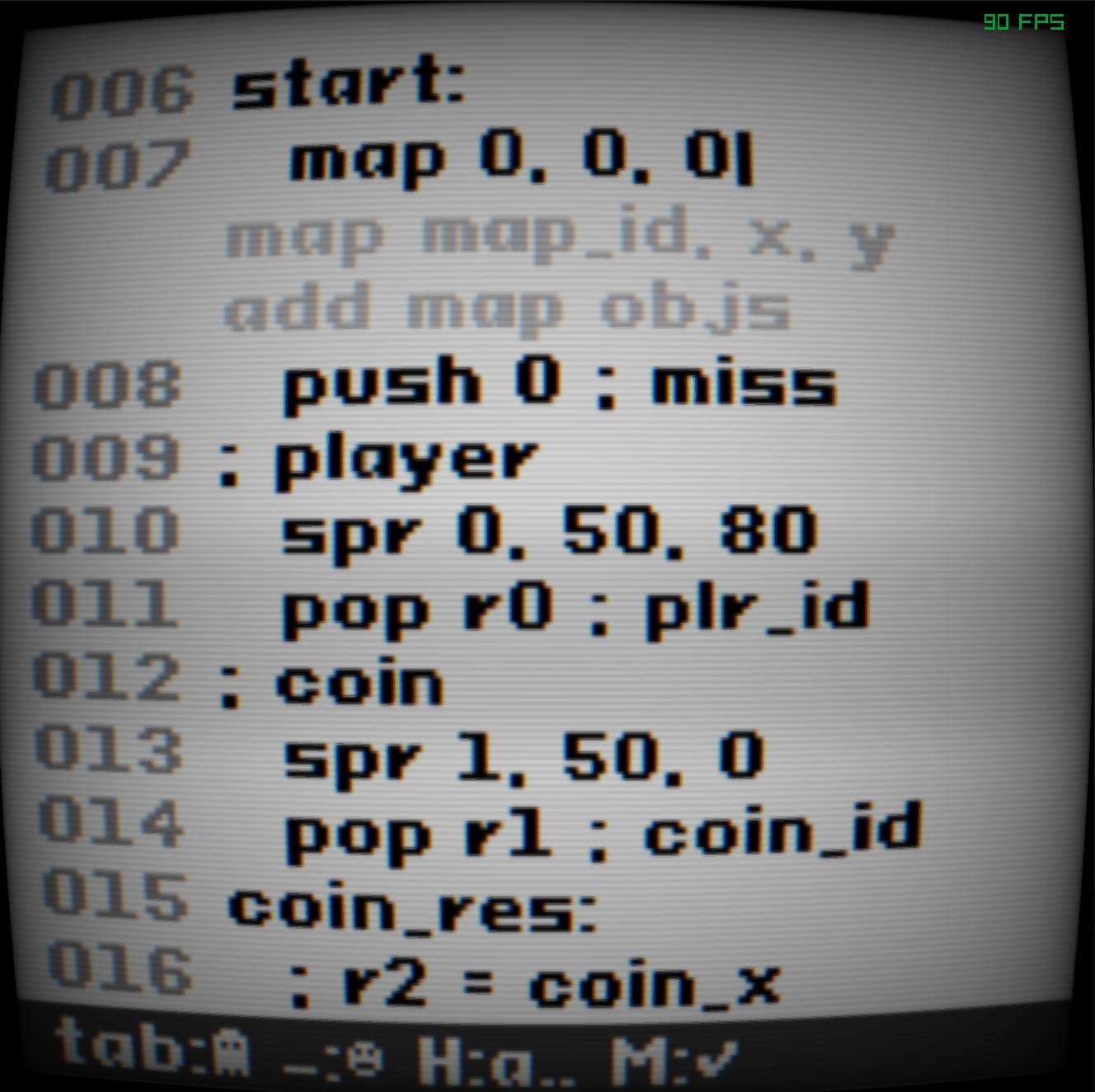

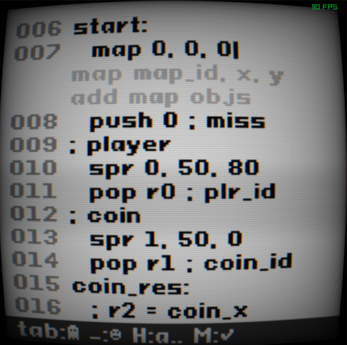

- Code in custom assembly language with built-in editor.

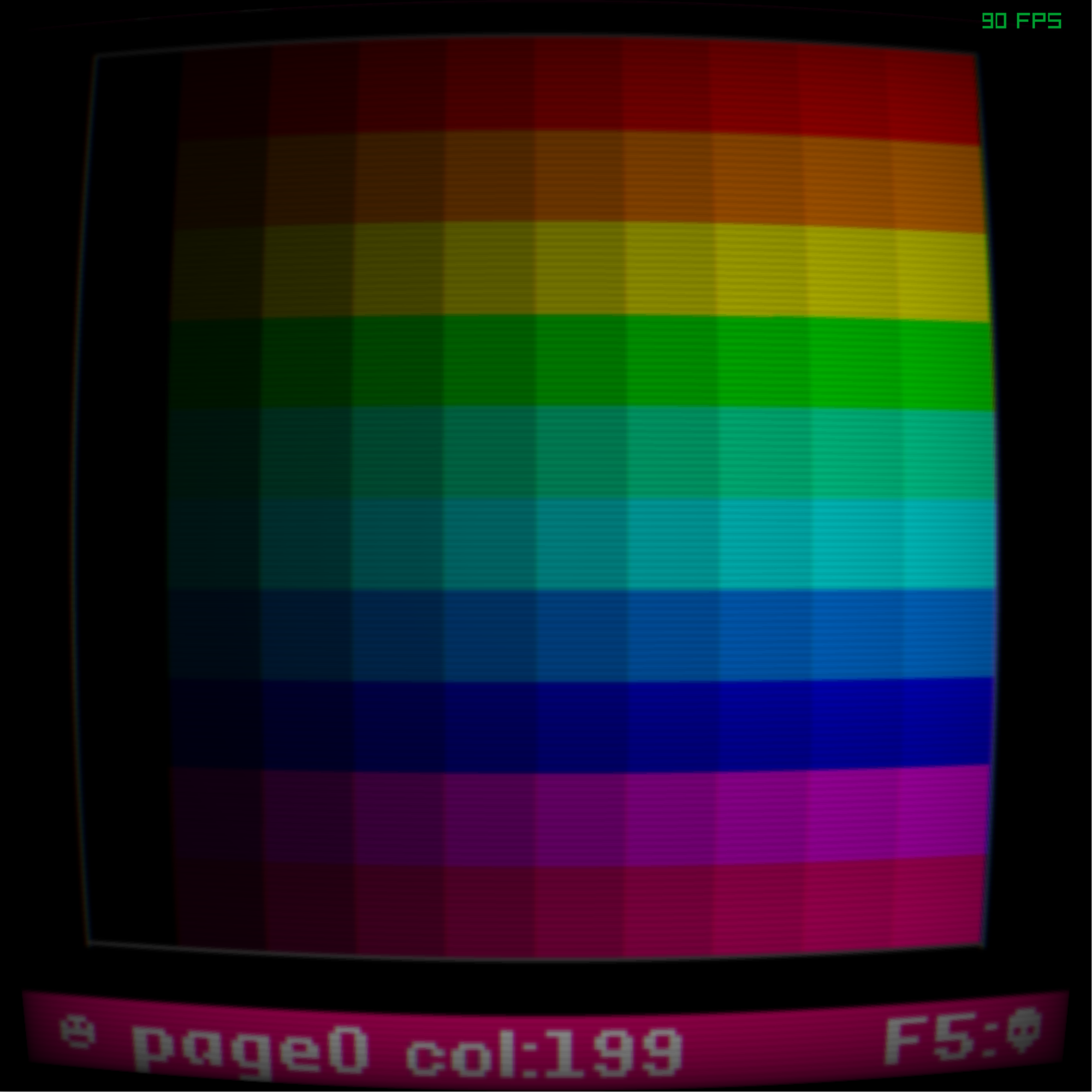

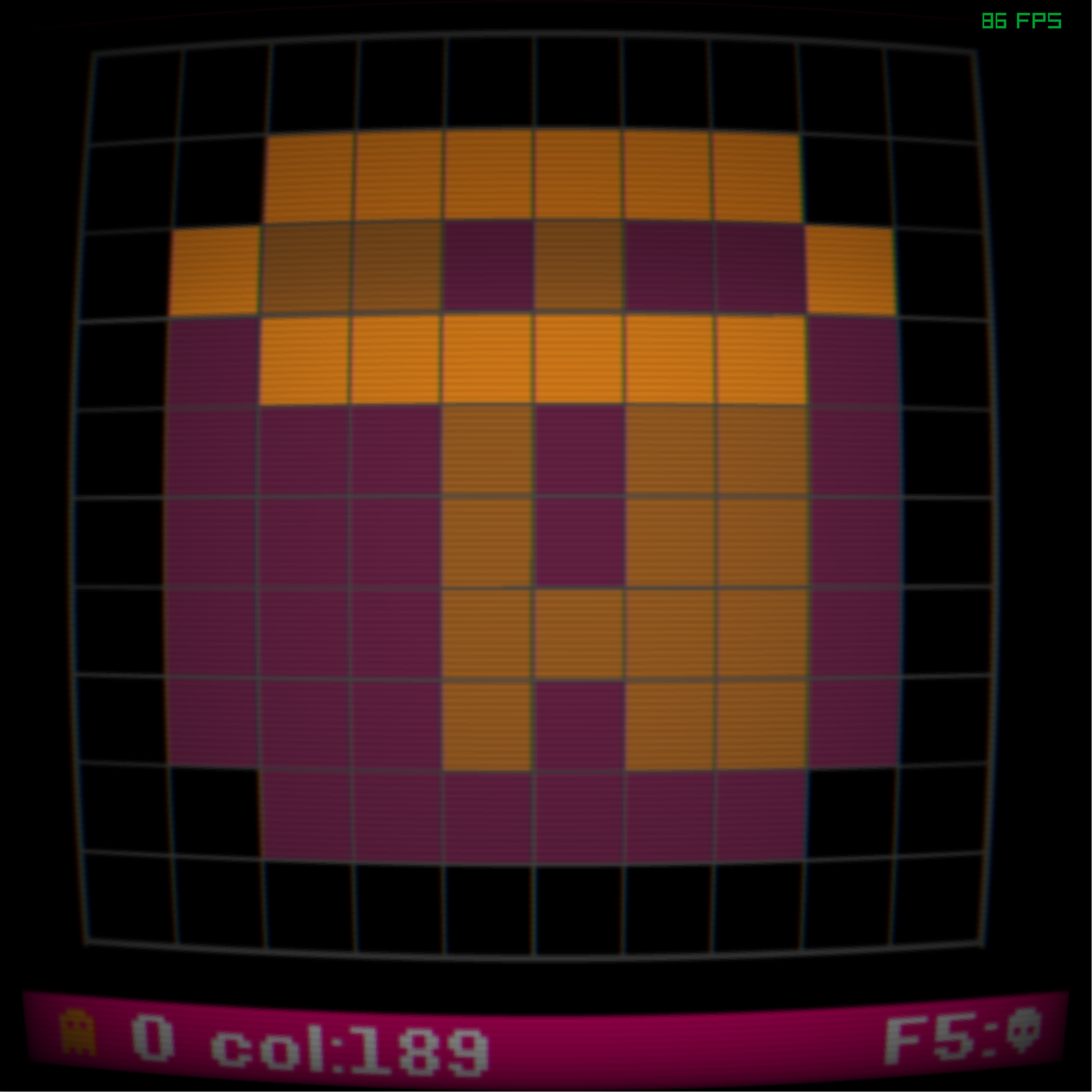

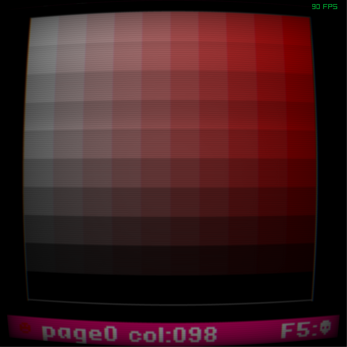

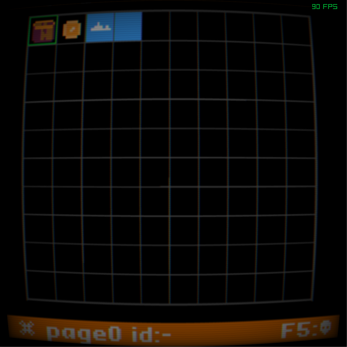

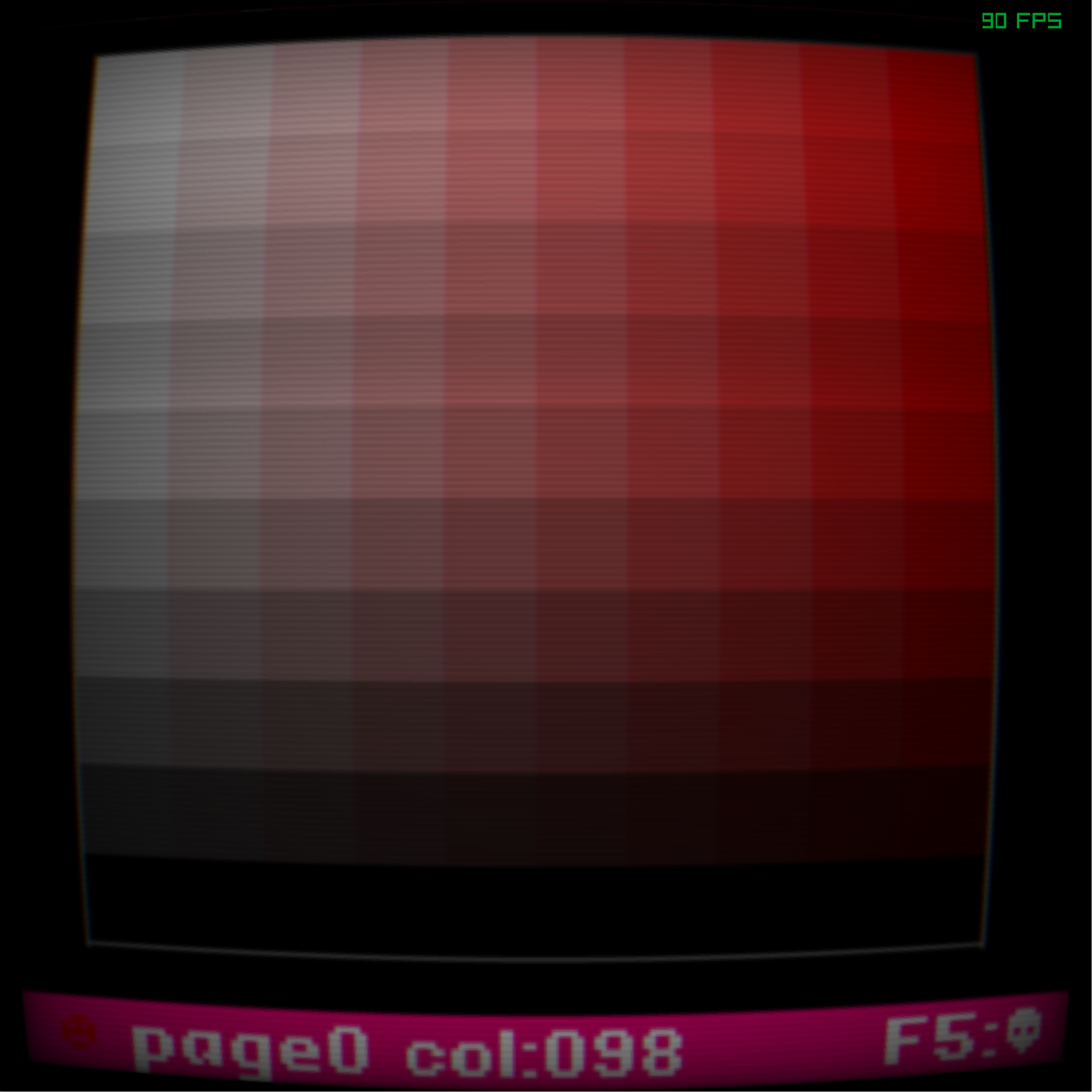

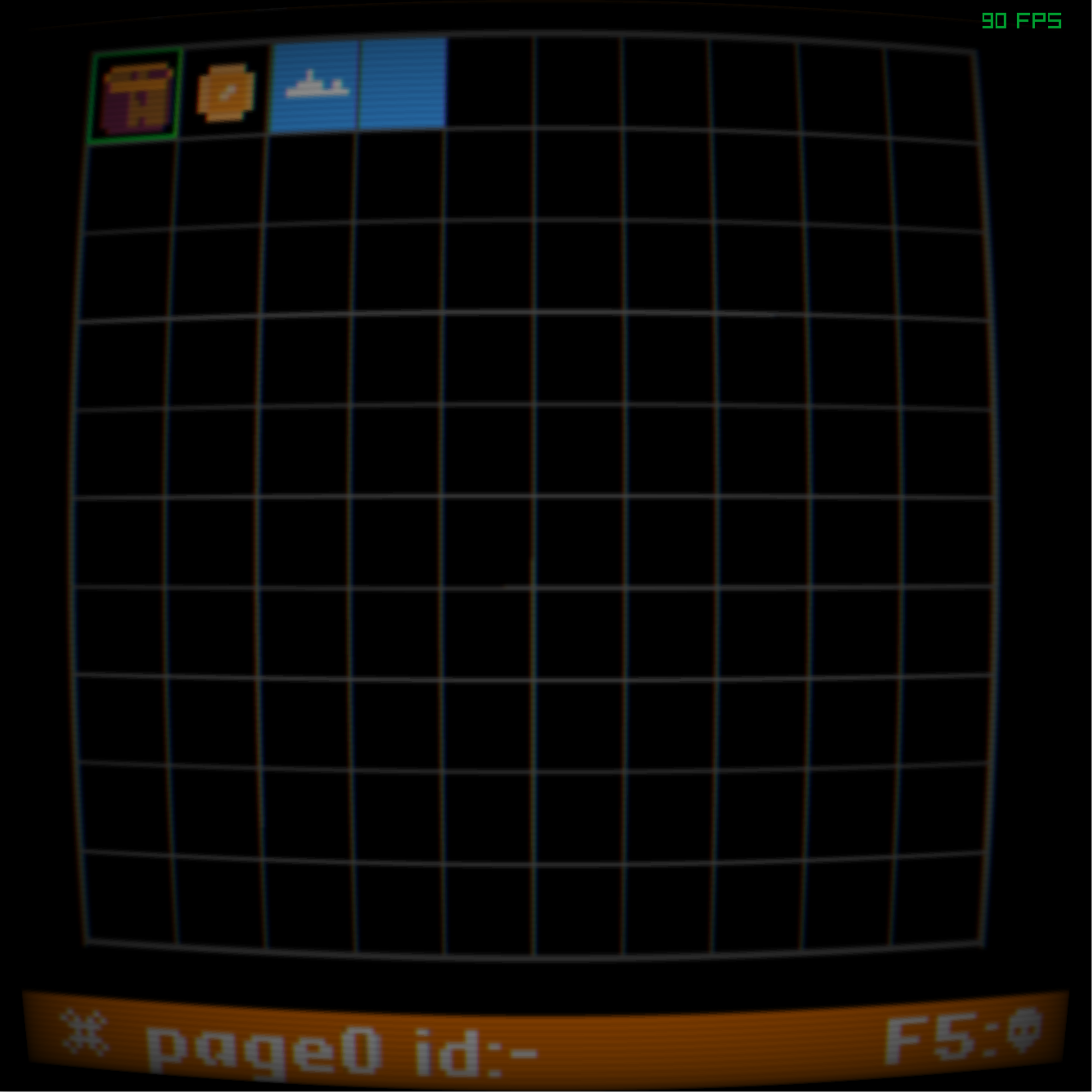

- Draw sprites with a 1000-color HSV palette.

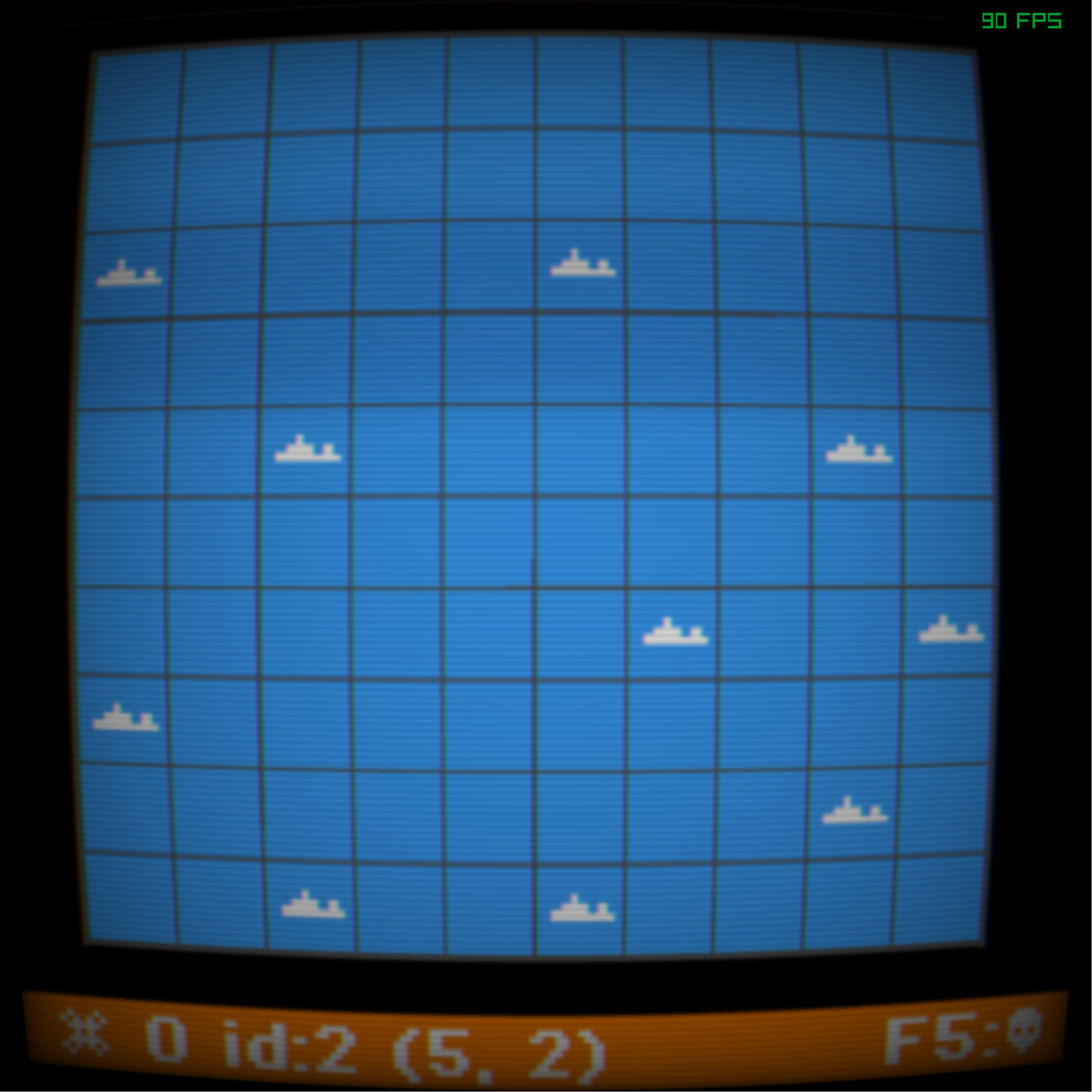

- Build tilemaps in the map editor.

- Built-in sound generator.

This is an early development build.

Feedback welcome!

Editor controls:

See hints on the status bar. Hold Shift to reveal available actions.

Load cartridge:

• Linux: ./lambda-10 --cart <cartridge>.json

• Windows: .\lambda-10.exe --cart <cartridge>.json

Short specs:

Console:

• Resolution: 100x100 px (game), 320x320 px (editor)
• Image: size = 10x10 px; colors = 1000; max = 10x10x1000 = 100k.
• Tile: size = 10x10; objects = 1000; max = 10x10x1000 = 100k.
• Sound: 10 channels; 3-dit wavetable (30 samples); waveforms = square, triangle, saw, sine, noise; sweep = up, down; sample rate = 20KHz.
• Control: WASD + ZXCV

MPU (Media Processor):

• Objects: up to 1000 game objects (sprites, maps) with position, lerp animation, parent-child hierarchy.
• Camera: viewport offset for game rendering.
• Sound: 10-channel queue, waveform synthesis (square, triangle, saw, sine, noise) with sweep.
• Command bus queue: receives commands from CPUs (spr, mov, hit, cam, snd, ...).

VM

• Base: decimal.
• Decimal bit: dit (~ 3.32 bit).
• Dit depth: 12 dit (3 + 3 + 3 + 3 ~ 39.84 bit).
• CPU (MIMD) count: 10.
• Stack: 1000 dyte (1245 byte).

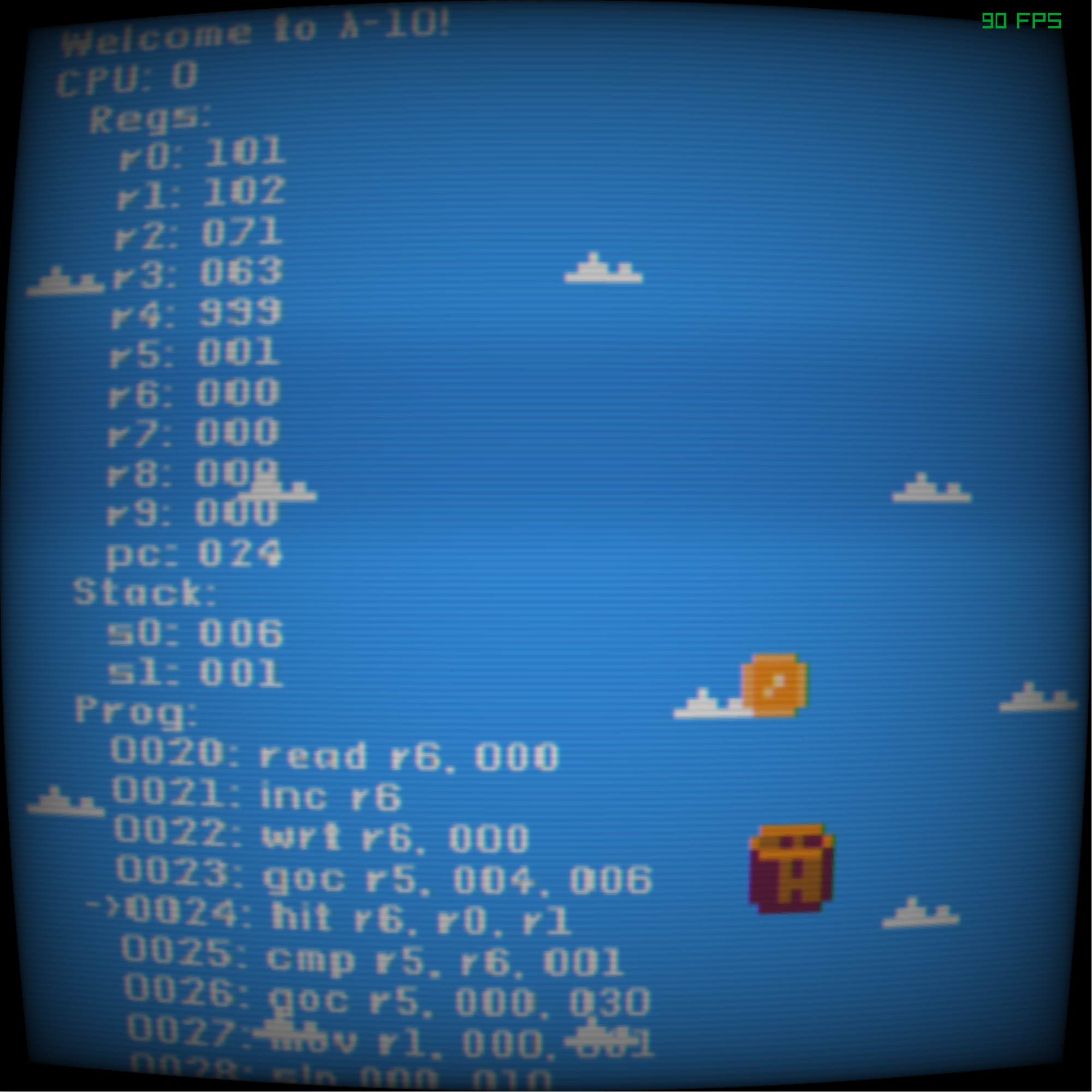

• Registers (1 dyte): r0, r1, r2, r3, r4, r5, r6, r7, r8, r9, pc, sc

Note:

• dit ~ 3.32 bit.
• dyte = 3 dit.
• word = 12 dit

Read full information in README.md.
